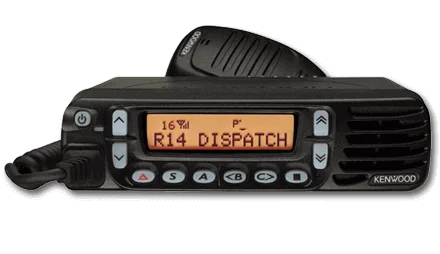

KENWOOD TK-7180/8180 Radios Wireless Voice & Data

Kenwood

TK-7180/8180

The KENWOOD TK-7180 and TK-8180 strike a perfect balance of specifications, features and costs in this broad base platform designed for the public safety, public service, government and private industrial sectors. The wide frequency range, transceiver specifications and power are perfect for both metropolitan and suburban radio systems and environments. The extra-large capacity and zone programming facilitate inter-agency interoperability and mutual aid and tactical channel organization. The remote mount option permits easy, aesthetically pleasing installation into existing radio consoles and contemporary sedans.

Performance Characteristics

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz (TK7180)
450 -520 MHz, 450 - 512 MHz, 400 - 470 MHz (TK-8180)

Power Output:
1 – 30W, 10 – 50W, 10-45W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
25 kHz, 30 kHz 25 kHz Wide / 12.5 kHz, 15 kHz Narrow

Physical Characteristics

Dimensions W x H x D
6-5/16 x 1-3/4 x 6-3/16 in

Weight
3.3 lbs

Keypad / Keys
6 Backlit PF Keys

Display
Backlit Dot Matrix LCD

User Environment

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
IP54/55

Request A Quote

Conventional & LTR® Zones
MPT1327 Trunking Option
Remote Control Head Option
12 Character Alphanumeric Aliases
Backlit Dot Matrix LCD
3-Digit Sub-Display
Function / Status LCD Icons
RSSI Indicator
Date & 12/24 Hour Time Clock
Transmit / Busy / Call Alert / Warn LED
6 Backlit PF Keys
Emergency / AUX Key
Enhanced KENWOOD Audio
Front Panel Speaker
Companded Audio
Voice Inversion Scrambler Built-in
Easy Option Port
Encryption / ANI Board Control
Emergency Call Features
DTMF Encode / Decode
Special Alert Tone Patterns
Call Key
Time Out Timer
Busy Channel Lockout
Timed Power Off
DB-25 Accessory Connector
9 Programmable AUX I/Os
2 Programmable AUX Outputs
Ignition Sense
Public Address / Horn Alert Option
MIL-Spec Standard Mic
MIL-Spec 12-Key DTMF Mic Option
Windows® Programming & Tuning
Windows® Firmware Uploading
Front Panel Test / Tune
Cloning

Brochures

KENWOOD TK-7180(H)/8180(H) Brochure

Control Station Accessories [+]

	KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). (mobile mounting hardware included)
	KMC-59C Control Station Desktop Microphone (8-pin mod. plug) Note: Compatible with FDMA (analog) and TDMA operations.
	KMC-9C Control Station Desktop Microphone (8-pin mod. plug)
	KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

	KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in)
	KES-5 External speaker, 40W max input Note: requires KCT-60M installed.
	KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
	KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

	KAP-2 Horn Alert/P.A. Relay Option Note: For MPT, HA operates in Trunked Mode only.
	KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line).
	KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max).
	KMB-10 Key lock adapter
	KRK-10 Remote Control Kit (a remote control cable (23 ft) is included).
